GDVS series

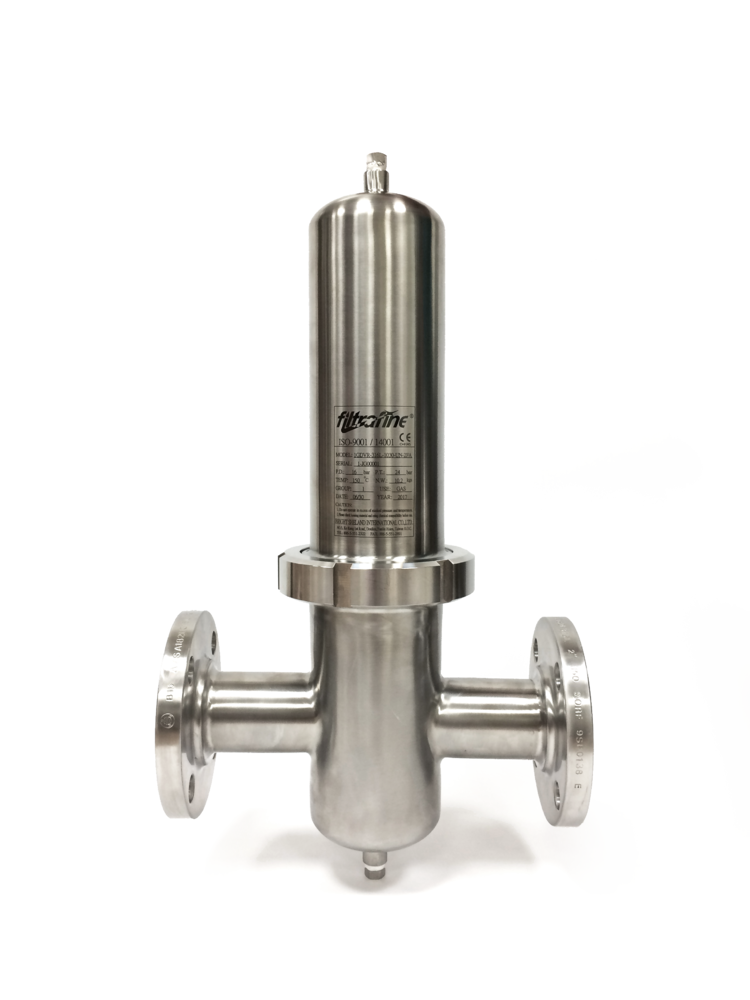

GDVS series sterile air filter housing is a single cartridge housing which can accommodate Filtrafine SSD-Steam/Sterile series filter cartridge.
It is equipped with sanitary TC connections and is made of Ra 32 electro-polished surface 316L stainless steel.
GDVS series sterile air filter housing is in-line high efficiency filters used to remove contaminate particles from steam systems in the pharmaceutical, biotechnology, food and beverage industries.
It is equipped with sanitary TC connections and is made of Ra 32 electro-polished surface 316L stainless steel.
GDVS series sterile air filter housing is in-line high efficiency filters used to remove contaminate particles from steam systems in the pharmaceutical, biotechnology, food and beverage industries.
Model :
GDVS
GDVS is designed to ensuring high flow rates at low differential pressures.
The tri-clamp / hex-bolt closure design provides absolute sealing and easy installation.
RoHS, FDA, Halal Certificated
Materials of Construction
Head: 316L stainless steel
Shell: 316L stainless steel
Gasket: Silicone ( EPDM, Viton are available upon request)
Dimensions
Inlet/ Outlet: 0.5", 1", 2", 2.5", 3" Sanitary Connection
Vent : 1" CB
Drain: 0.5" CB
&
Inlet/ Outlet: 4", 6", 2", 8", 3" ANSI Flange
Vent : 0.5" NPT
Drain: 0.5" NPT
Maximum Operating Pressure
