Wound-Fine BB Series

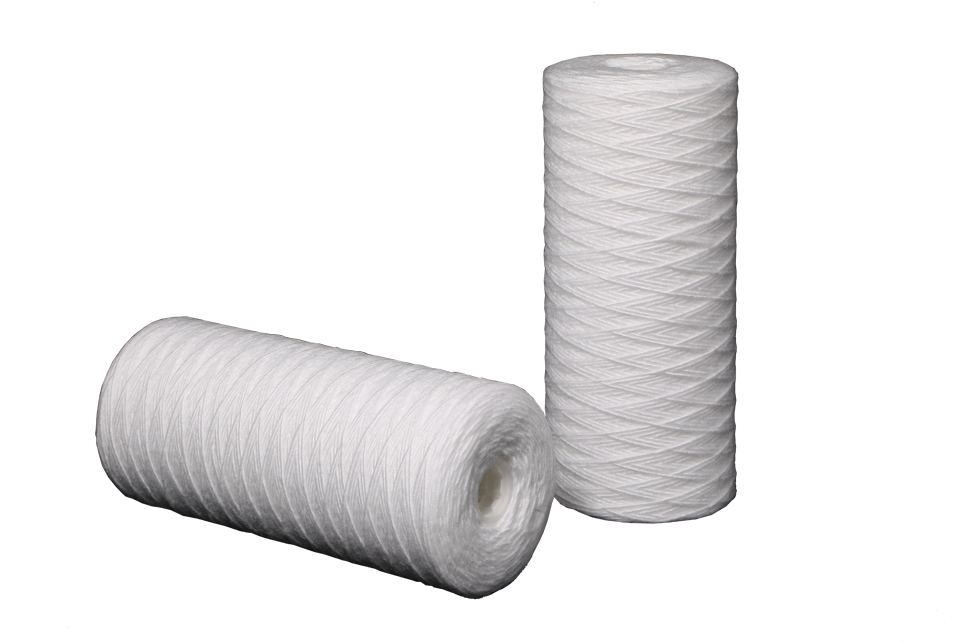

WF-BB series filter cartridge
- Graded pore structure provides efficient removal of a wide range of particle sizes
- Wrapped center core helps to minimize fiber migration
- Special outside diameter for Big Blue size housings.
・ Type: String Wound Filter
・ Material: PP / Cotton / Glass Fiber
・ Length: 10” / 20”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
- Graded pore structure provides efficient removal of a wide range of particle sizes
- Wrapped center core helps to minimize fiber migration
- Special outside diameter for Big Blue size housings.
・ Type: String Wound Filter
・ Material: PP / Cotton / Glass Fiber
・ Length: 10” / 20”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
Model :
WF-BB
Materials of Construction
Filter Media: Premium Bleached Cotton (FDA Listed), Cleaned Polypropylene (FDA Listed)
End Caps: Polypropylene, 304 Stainless Steel
Core Cover Option: used to control migration, compatible with existing fiber
Operating Conditions

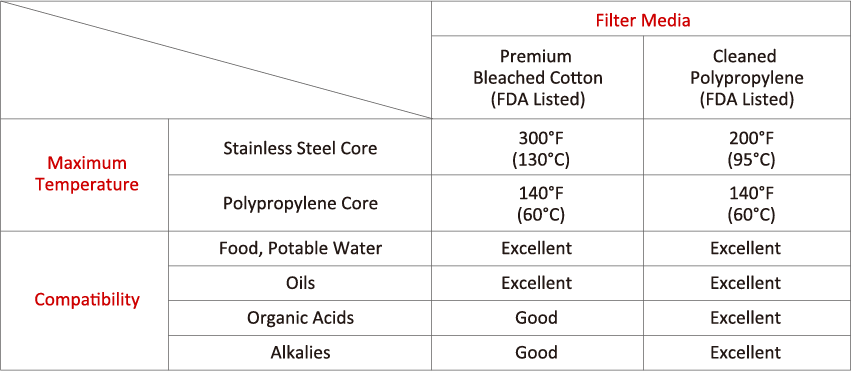

Maximum Temperature Ratings: check material selection guide.
Dimensions
Outside Diameter: 4.3" (110mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20"
Retention Ratings
WF-P: 1, 5, 10, 20, 30, 50, 100 µm
WF-C: 1, 5, 10, 20, 30 µm
