SDV Series

Filtrafine SDV series sanitary filter housing is an innovative product for food and beverage industry, pharmaceutical industry and any high end industry with requires high purity in fluid.
Model : SDV

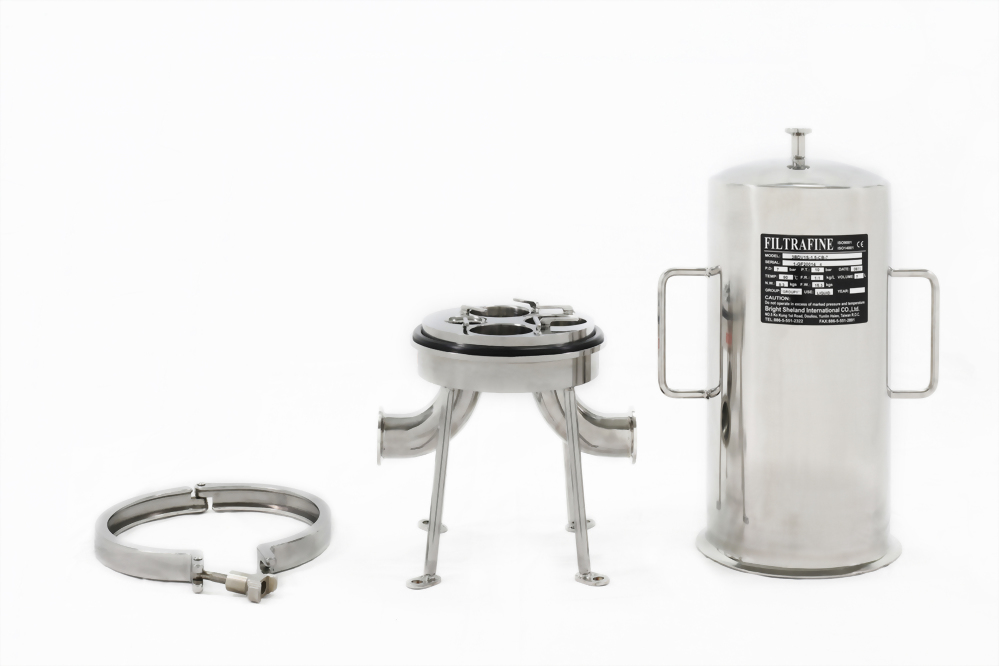

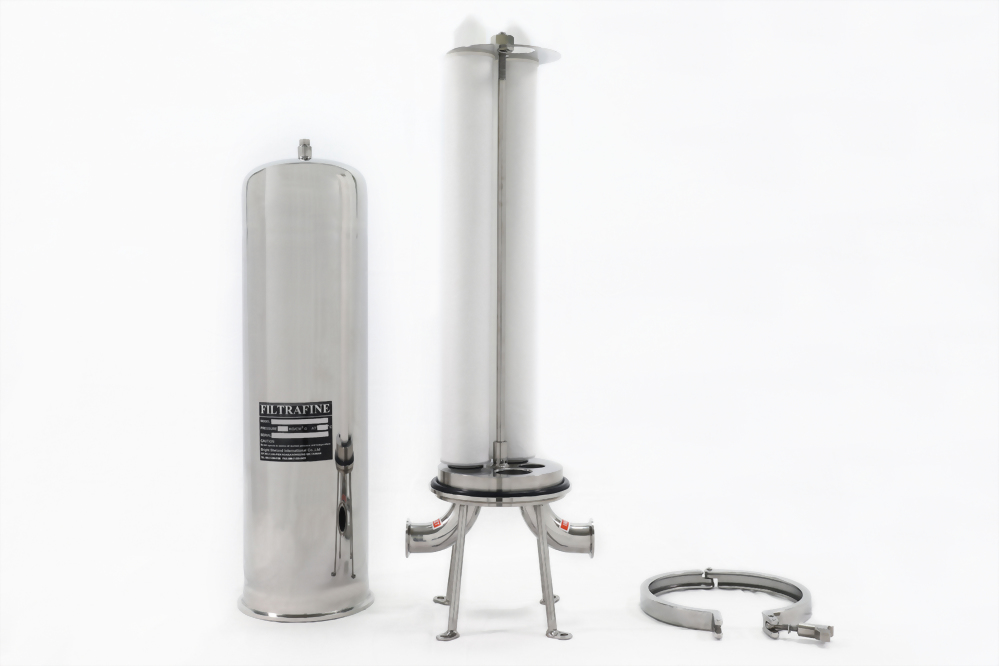

Sanitary Vessel

The SDV series is made with 0.25RA electro-polished stainless steel 316 or 316L for durability and ensure optimal cleanability in critical area while maintaining cost effectiveness.

The SDV series is available in either single or multiple cartridge housings, also come in 10'to 40' to meet various needs in your application.





Materials of Construction
Head: 316 or 316L Stainless Steel
Shell: 316 or 316L Stainless Steel
Leg / Clamp: 304 Stainless Steel
Gaskets / O-rings: Standard: Silicone
Gaskets / O-rings: Optional: EPDM, Teflon Encapsulated Silicone, Viton

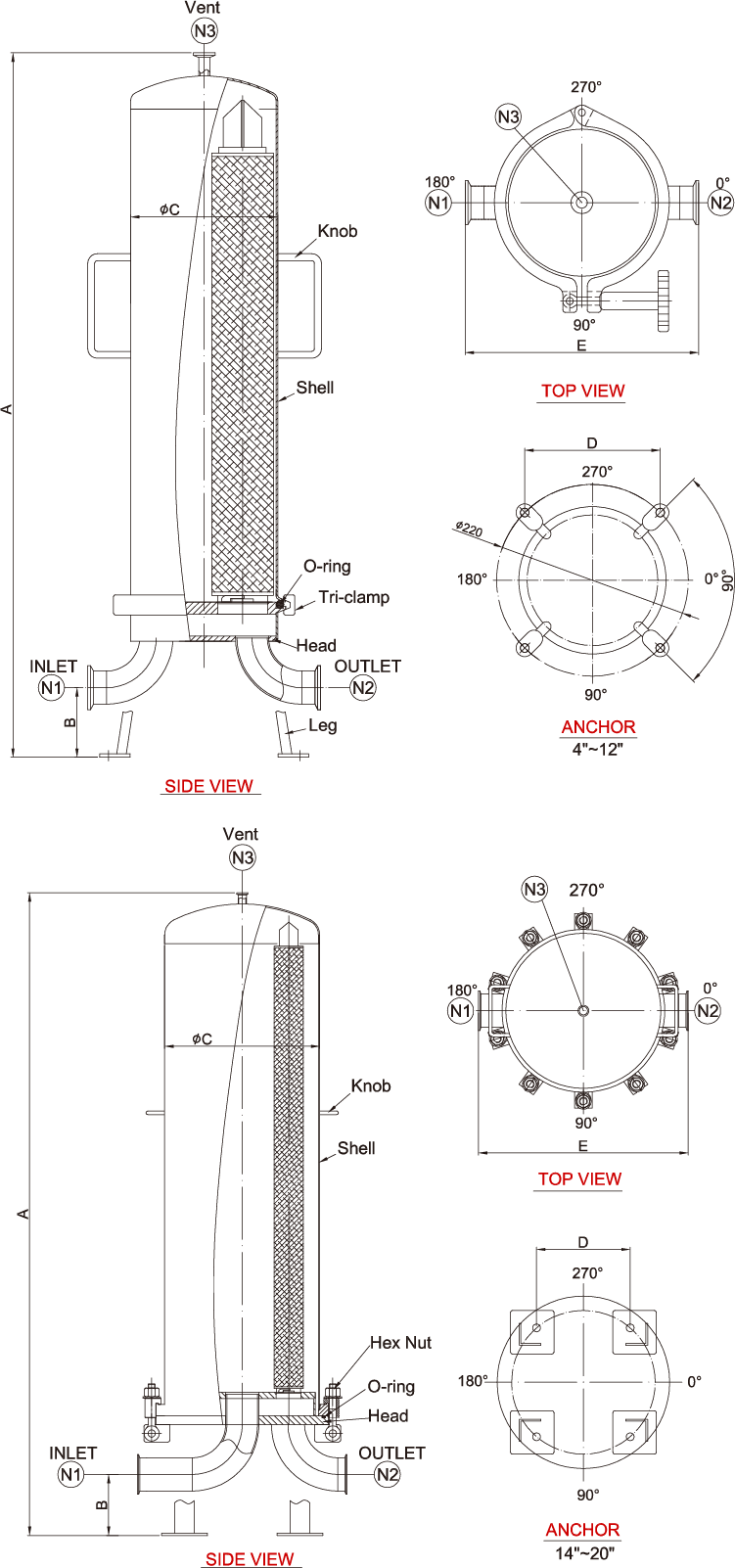

Dimensions
Inlet/ Outlet: 1", 2", 3" Ferrule End
Vent : 1/2' Ferrule End

*If you need over 12 rounds cartridge housing, please contact with your Filtrafine representative.

Performance Specifications
Maximum Operating Pressure: 150 psig (10.3 bar) @ 77°F (25°C) in liquid service
