BDV Series

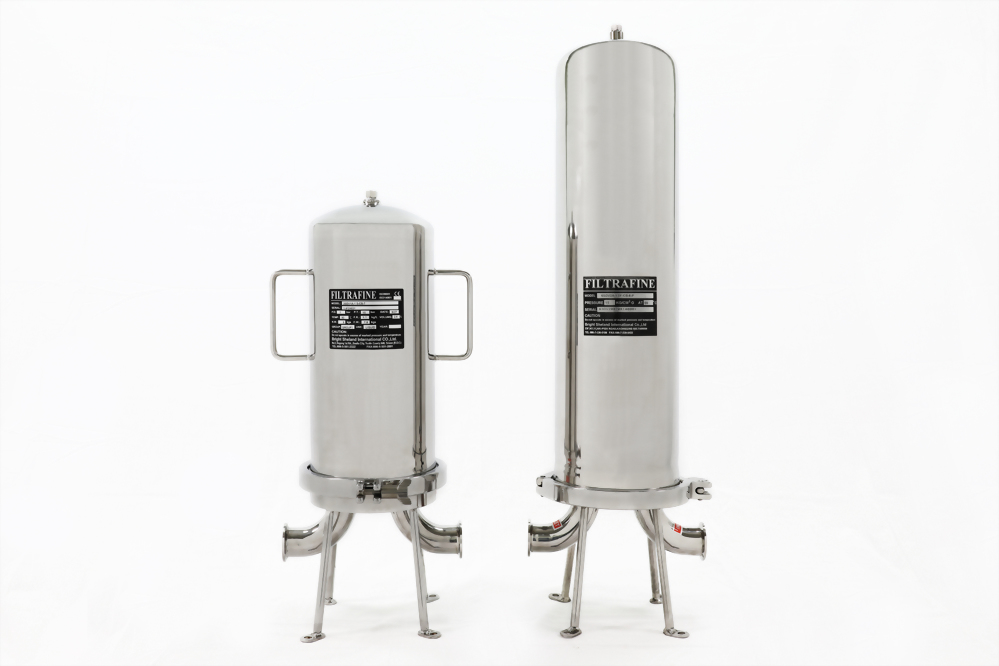

Filtrafine BDV series sanitary beverage filter housing is made of stainless steel 304, 316 or 316L material, which is designed for sterile filtration prior to bottling.
All internal surfaces are polished to 0.2 RA to limit microbial adhesive and provide easy cleaning. The sanitary connection design ensures product can no longer become contaminated.
All internal surfaces are polished to 0.2 RA to limit microbial adhesive and provide easy cleaning. The sanitary connection design ensures product can no longer become contaminated.
Model :
BDV
Sanitary Vessel
100 psig , Sanitary Single and Multiple Cartridges Filter Housings Innovative Design Enhances Cleanability and Microbiological Safety due to Crevice-Free, Polish and Hygienic Design
The BDV series housing is compatible with 1 to 29 round and 10" to 40" length filter cartridges for client various flow rate demand.
BDV is compatible with Filtrafine VSF, BPPF and BGPF Series filter cartridges that meets and surpasses the filtration criteria necessary to maintain product quality.
Materials of Construction
Head: 316 or 316L Stainless Steel
Shell: 316 or 316L Stainless Steel
Leg / Clamp: 304 Stainless Steel
Gaskets / O-rings: Standard: Silicone
Optional: EPDM, Teflon Encapsulated Silicone, Viton

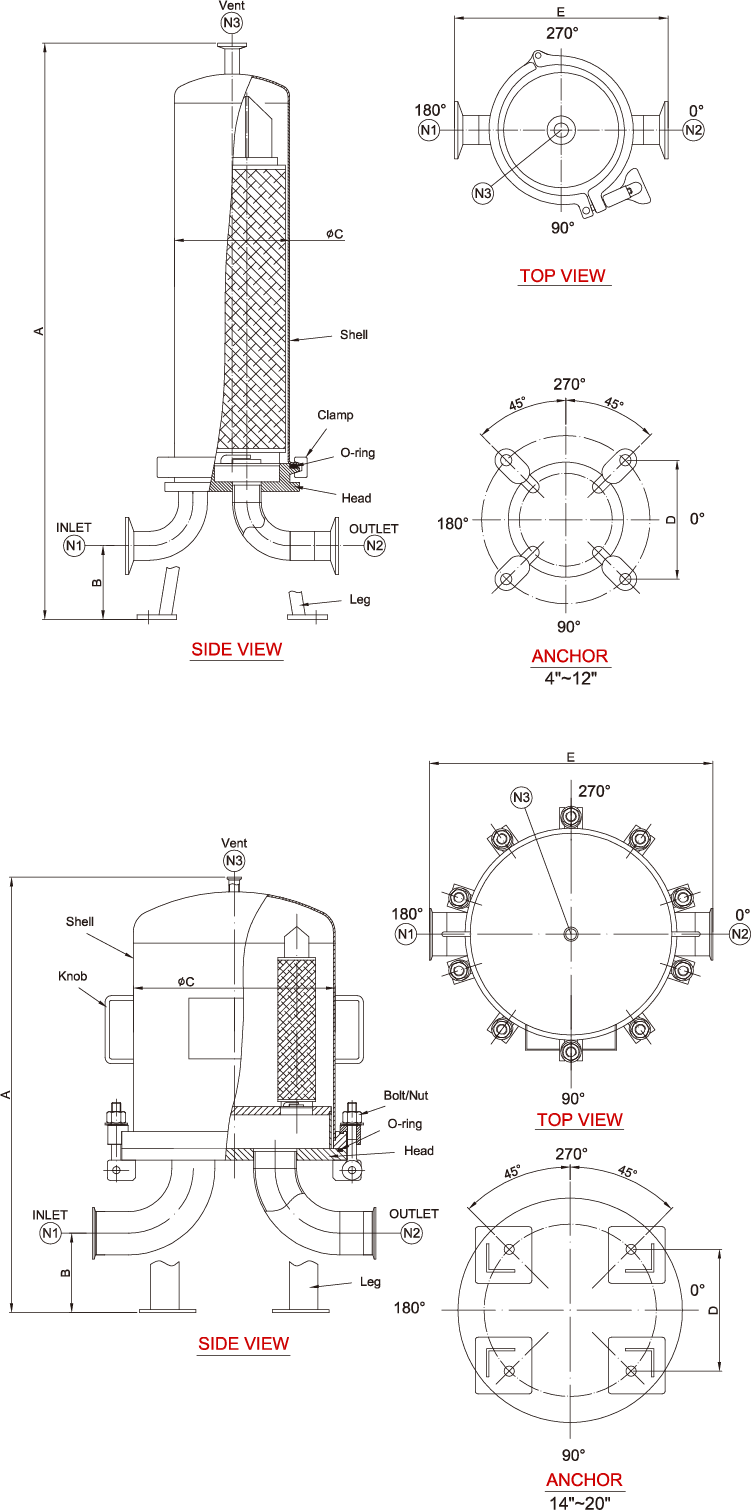

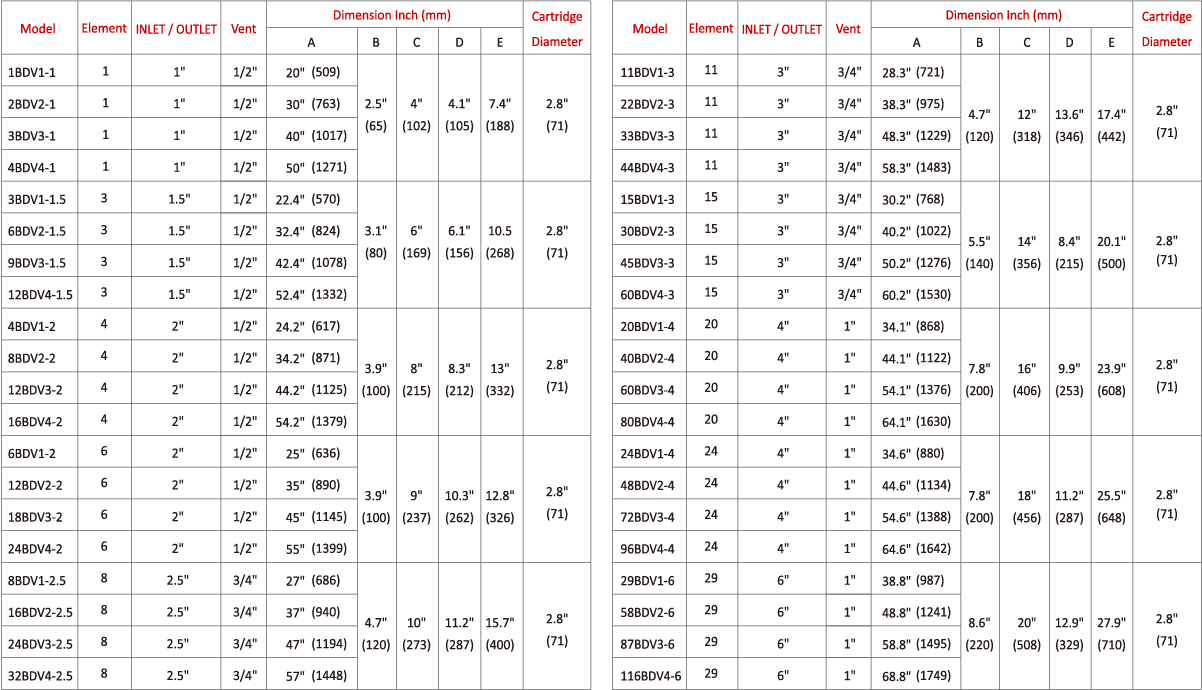

Dimensions
Inlet/ Outlet: 1" - 6" Ferrule End
Vent : 1/2" - 1" Ferrule End
*If you need over 12 rounds cartridge housing, please contact with your Filtrafine representative.
Performance Specifications
Maximum Operating Pressure: 100 psig (7 bar) @ 77°F (25°C) in liquid service.
