MicroGlass-Flow Series
MFGN series filter cartridges utilize glass fiber media with rigid P.P. center core and color net.
Besides, MFGN series filters have large surface area which provides high dirt holding capacity and long on-stream life.
The micron rating can be easily recognized by netting in different colors, which provides users quick determination.
Besides, MFGN series filters have large surface area which provides high dirt holding capacity and long on-stream life.
The micron rating can be easily recognized by netting in different colors, which provides users quick determination.
Model :
MFGN
Materials of Construction
Filter Media:Fiber Glass
Support Material:Polyester
Hardware:Polypropylene
Sealing:Thermal Bond
Gaskets/ O-rings:Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton
Operating Conditions
Maximum Operating Pressure:
75 psid (5.1 bar) @ 68°F (20°C)
40 psid (2.8 bar) @ 150°F (65°C)
Recommended Change Out Differential Pressure: 35 psid (2.4 bar)

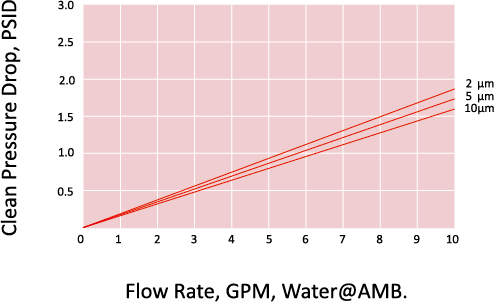

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.
Dimensions
Outside Diameter:2.67” (68mm)
Lengths:10”, 20”, 30”, 40”
Outside Diameter:2.67” (68mm)
Lengths:10”, 20”, 30”, 40”
End Configuration
DOE
= Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet
Retention Ratings
2, 5, 10 µm Absolute
